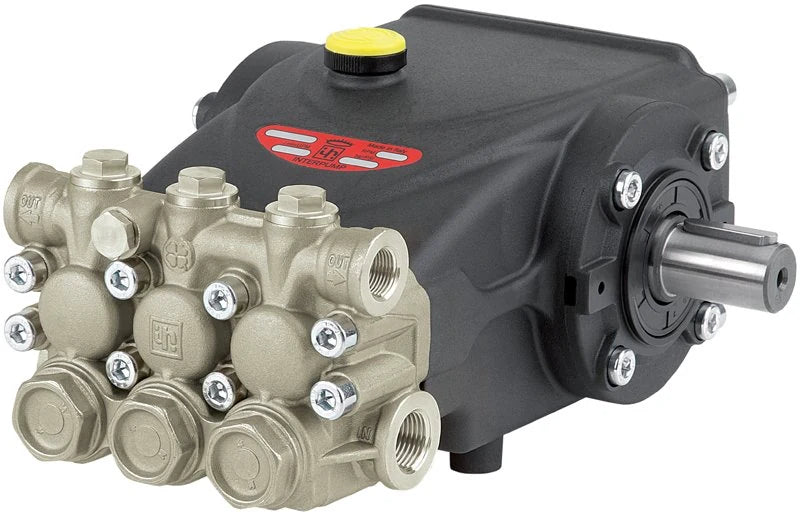

Interpump E3B2118M 59 Male Shaft Pump

• 210 Bar
• 18 Lpm
• 1450 Rpm
• 9.8 Hp, 7.21 kW
• 24mm male shaft
• Nickel plated brass manifold
• 1/2"BSP female inlet
• 3/8"BSP female outlet

The Interpump E3B2118M Evolution 59 Series is a cutting-edge high-pressure pump engineered for heavy-duty cleaning applications. Designed to deliver exceptional performance and durability, this pump is ideal for professional pressure washing, industrial cleaning, and demanding exterior cleaning tasks. Whether used in commercial cleaning systems or integrated into custom-built pressure washing equipment, the E3B2118M provides reliable, consistent power for the toughest jobs.

Key Features:

• Built with a forged brass manifold, this pump is corrosion-resistant, ensuring long-lasting durability, even in harsh environments.

• The stainless steel valves and ceramic plungers are engineered to withstand extreme pressures and wear, prolonging the pump’s operational life.

• The high-efficiency crankcase reduces wear on internal components and optimizes lubrication, improving energy efficiency and reducing maintenance requirements.

• The oversized bearings and robust design of the crankshaft allow the pump to endure high workloads and continuous operation without compromising performance.

• Operating at a low 1,450 RPM minimizes wear and tear, reducing heat generation and extending the overall lifespan of the pump. The lower speed also contributes to quieter operation, making it ideal for environments where noise reduction is important.

• Maintenance is made simple with easy access to valves, seals, and plungers, reducing downtime and keeping your cleaning operation running smoothly.

• The pump is fitted with high-performance seals that provide superior resistance to wear and chemical damage, ensuring long-term reliability even under harsh working conditions.

Technical Specifications:

• Maximum Pressure: 210 bar / 3045 psi

• Flow Rate: 18 L/min

• Max Temperature: 40°C

• Rated Speed: 1450 RPM

• Nickel Plated Brass Head

• 24mm Male Input Shaft

• Power Required: 9.8 HP / 7.21 kW

• Inlet: 1/2” BSP

• Outlet: 3/8” BSP

Ideal Applications:

• Commercial pressure washers

• Industrial and agricultural cleaning

• Heavy-duty vehicle washing

• Surface preparation (removing dirt, paint, and coatings)

• Large-scale exterior cleaning projects

Whether you’re looking to upgrade your existing equipment or build a custom pressure washing system, the Interpump E3B2118M Evolution 59 Series Pump offers unbeatable reliability, power, and efficiency. Engineered for high-demand applications, this pump ensures you have the performance needed to tackle even the toughest cleaning tasks.
