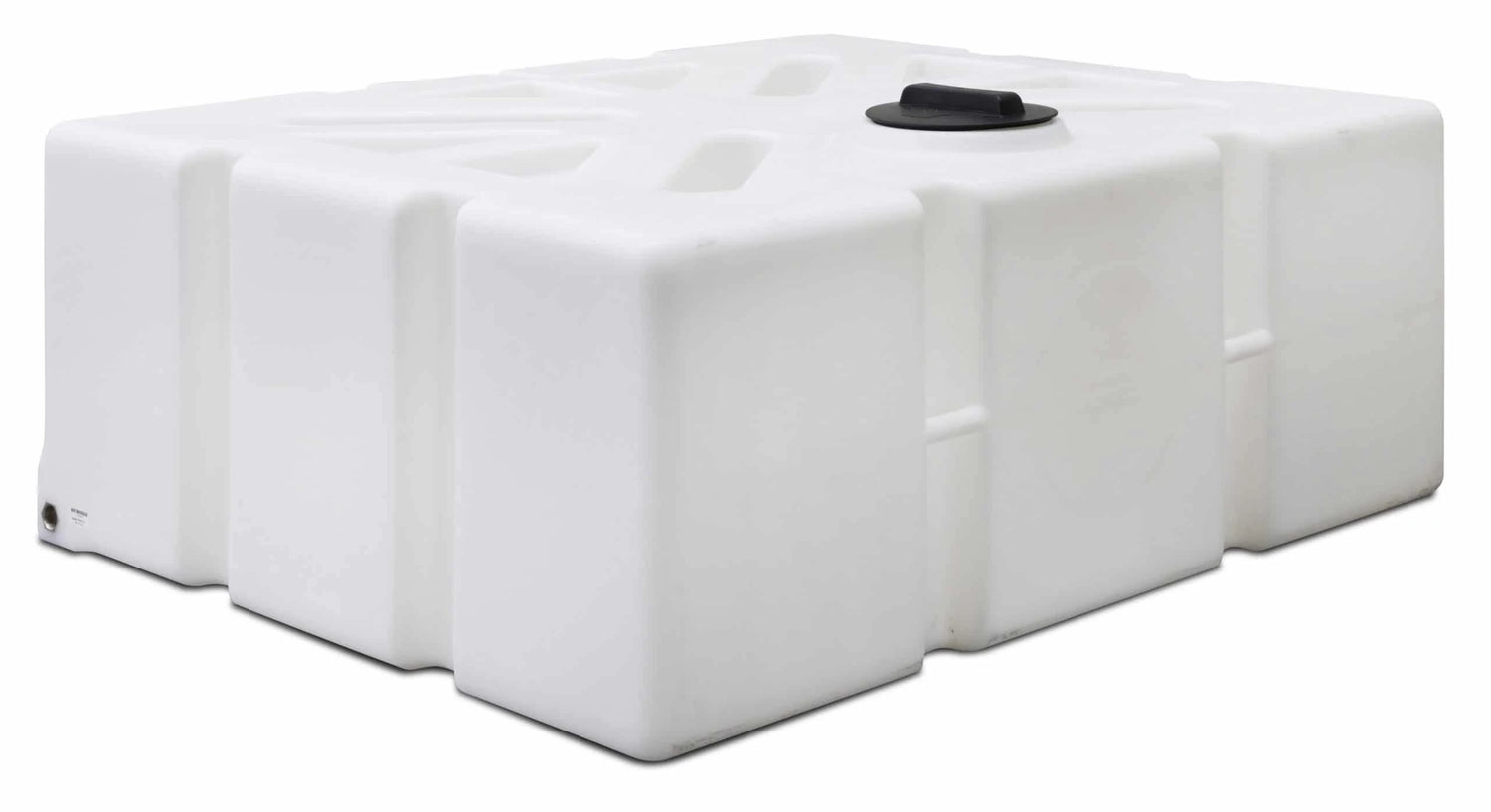

Wydale 1000L Flat tank 8" vented lid

Wydale 1000 Litre Flat Tank – 8″ Vented Lid Version

The Wydale 1000 Litre Flat Tank is a versatile, low-profile water storage solution, ideal for installation in vans, trailers or on skids for use in window-cleaning, pressure-washing or other exterior cleaning setups. This model is moulded from medium density polyethylene and features a baffled design to reduce sloshing during transit, making it highly suited to mobile applications.

Technical Specifications

Baffled internal walls to stabilise the liquid and reduce movement when mounted in transit.

• Flat Orientation:
  Length (mm) 1590
  Width (mm) 1240
  Height (mm) 590
• Capacity: 1000ltr
• Weight: 60kg
• Lid 8" Int Plain, 8" Int Vent
• Outlet: 1″ BSP female thread
• Constructed from UV-stable, translucent polyethylene

Note & Installation Tips

Ensure the chassis or mounting frame supports the full weight when the tank is filled (1000 litres of water ≈ 1000 kg).

If transporting the tank with water in transit, ensure appropriate securing, load distribution and compliance with vehicle weight limits.

The 8″ vented lid allows airflow — keep clear of debris or hose entanglements that might block ventilation.

Check compatibility of fittings (especially if integrating with chemical or foam dosing systems) to ensure safe use with the polyethylene material.
