Dosatron D3IL25IEVVF SH Safe Unit with Inlet Kit
£1,262.17 + VAT
£1,514.60 inc VAT
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
All orders are dispatched promptly from our UK warehouse, with most in-stock items shipped the same or next working day.
Larger machinery and built-to-order equipment may require additional lead time, which will be confirmed after checkout or by our team.
Shipping rates are calculated based on size, weight, and destination, and tracking information is provided once your order is on its way.
If you need an urgent delivery or have specific requirements, please contact us before ordering.
Description
Description

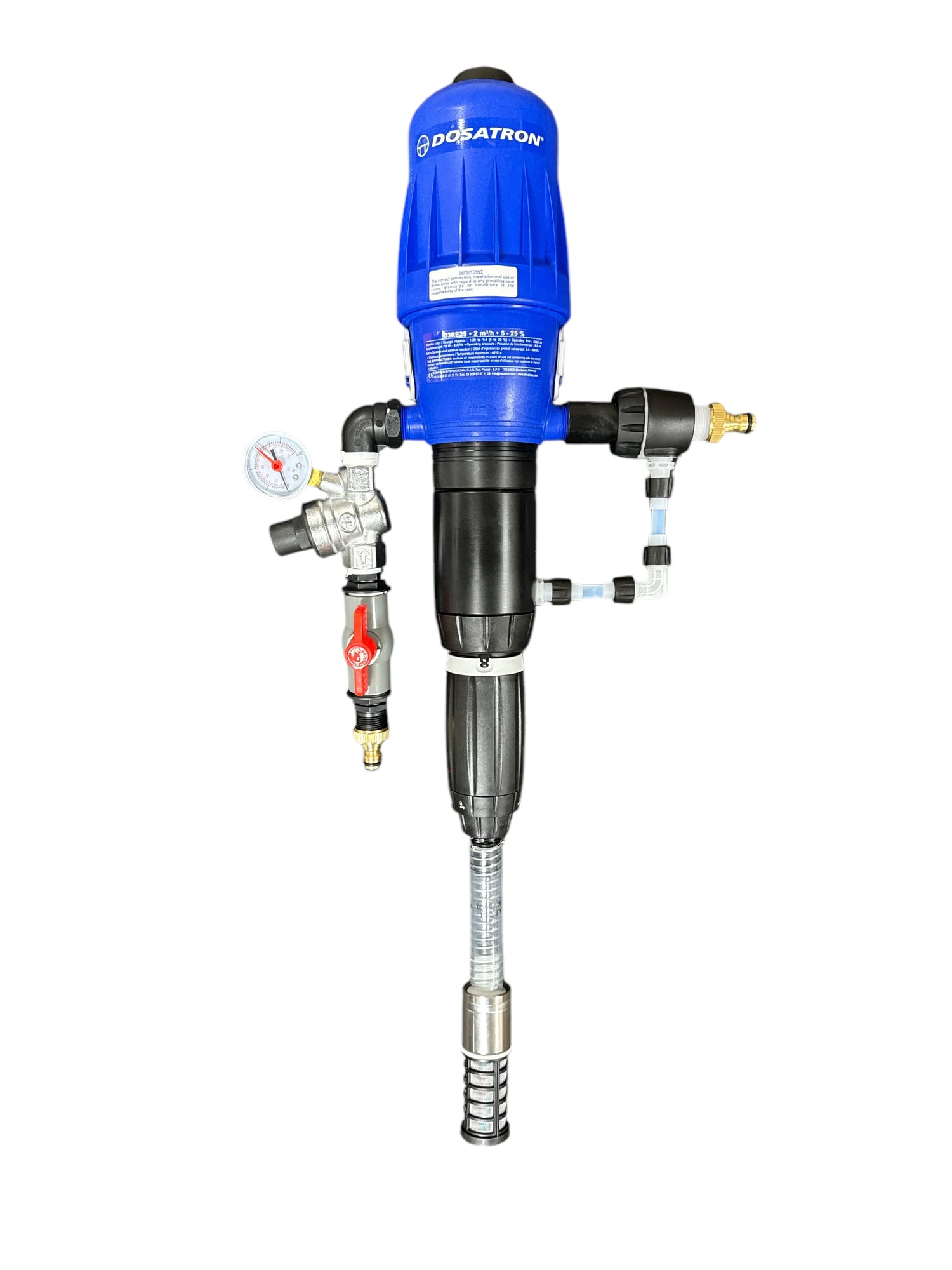

Dosatron D3IL25IEVVF SH Safe Unit with Inlet Kit
Dosatron dosing pumps are installed directly in the water supply line and operate by using the flow of water as the power source – no electric power is needed. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water.
Inside the Dosatron chemical injector unit, the concentrate is mixed with the water, and the water pressure forces the solution downstream.
The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.
N.B. Old part number D3RE25IEV.
Technical Specifications
Model: Dosatron D3IL25IEVVF SH Safe
- 5 – 25 % [1:20 – 1:4]
- 10 l/h – 2 m3/h
- 0,5 – 4 bar
- 0,1 – 300 l/h
- ~ 0,53 l
- NTP-BSP 3/4” M Ø 20x27mm
- hose: PVC Ø 16x22mm – Lg 1,75m
Contents:
- D3IL25IEVVF
- Dosatron Wall Bracket
- Transparent Suction Tube – 175cm Long, ø 6mm ID x 9mm OD (1/4’’ ID x 3/8’’ OD)
- Inlet: Hozelock Male
- Outlet: Hozelock Male
- Caleffi Valve with pressure gauge
- Ball Valve
- Owner’s Manual
Barrel NOT included
Key Features
• Water-powered, non-electric proportional dosing system
• SH Safe model for enhanced operator protection and backflow prevention
• Adjustable dosing ratio for accurate chemical mixing
• Resistant to aggressive acids, detergents, and disinfectants
• Simple to install, operate, and maintain
• Ideal for soft washing, sanitising, horticultural, and industrial cleaning systems
Warranty: 12 month limited warranty. Return to base for full warranty inspection.

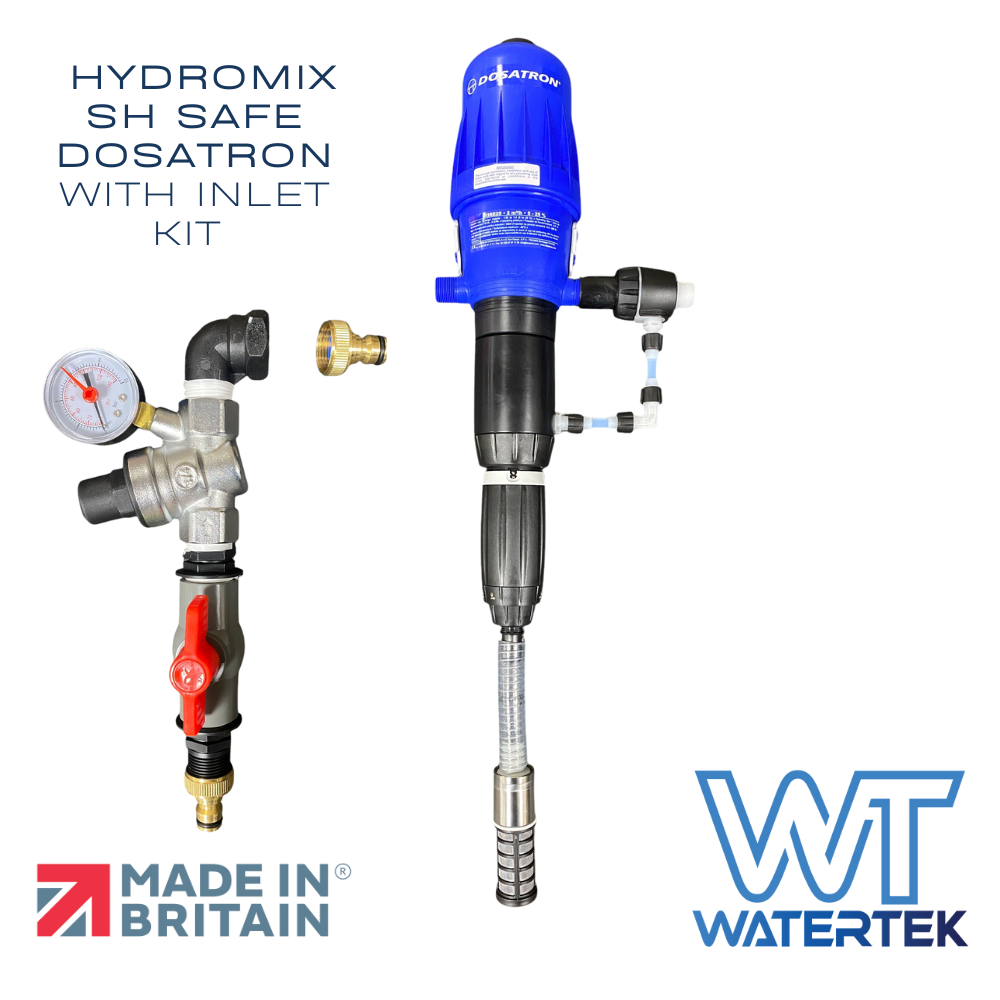

Watertek® Inlet Kit for Dosatron
Equip your dosing system with this precision-engineered inlet kit, tailored for seamless integration with the Dosatron D07 & D3 series dosing units.
Designed for professional use in exterior-cleaning and soft-wash installations, this kit ensures a clean, accurate and reliable inlet plumbing setup.
Designed to control both flow and pressure entering the Dosatron, this assembly helps prevent damage caused by over-pressurisation.
The integrated pressure gauge allows accurate regulation of inlet pressure, while the ball valve enables quick on/off flow control directly at the unit, eliminating the need to operate the supply tap remotely.
Technical & Compatibility Details
Model Fit: Dosatron D07 & D3 range (D3RE series)
Included Components: Ball valve, pressure gauge (preset), filter element, pressure-reducing regulator
Materials: Corrosion-resistant brass and polypropylene
Installation: Recommended upstream of Dosatron unit; ensure water supply meets pressure & flow requirements
Inlet: Hozelock Male
Outlet: Hozelock Male
