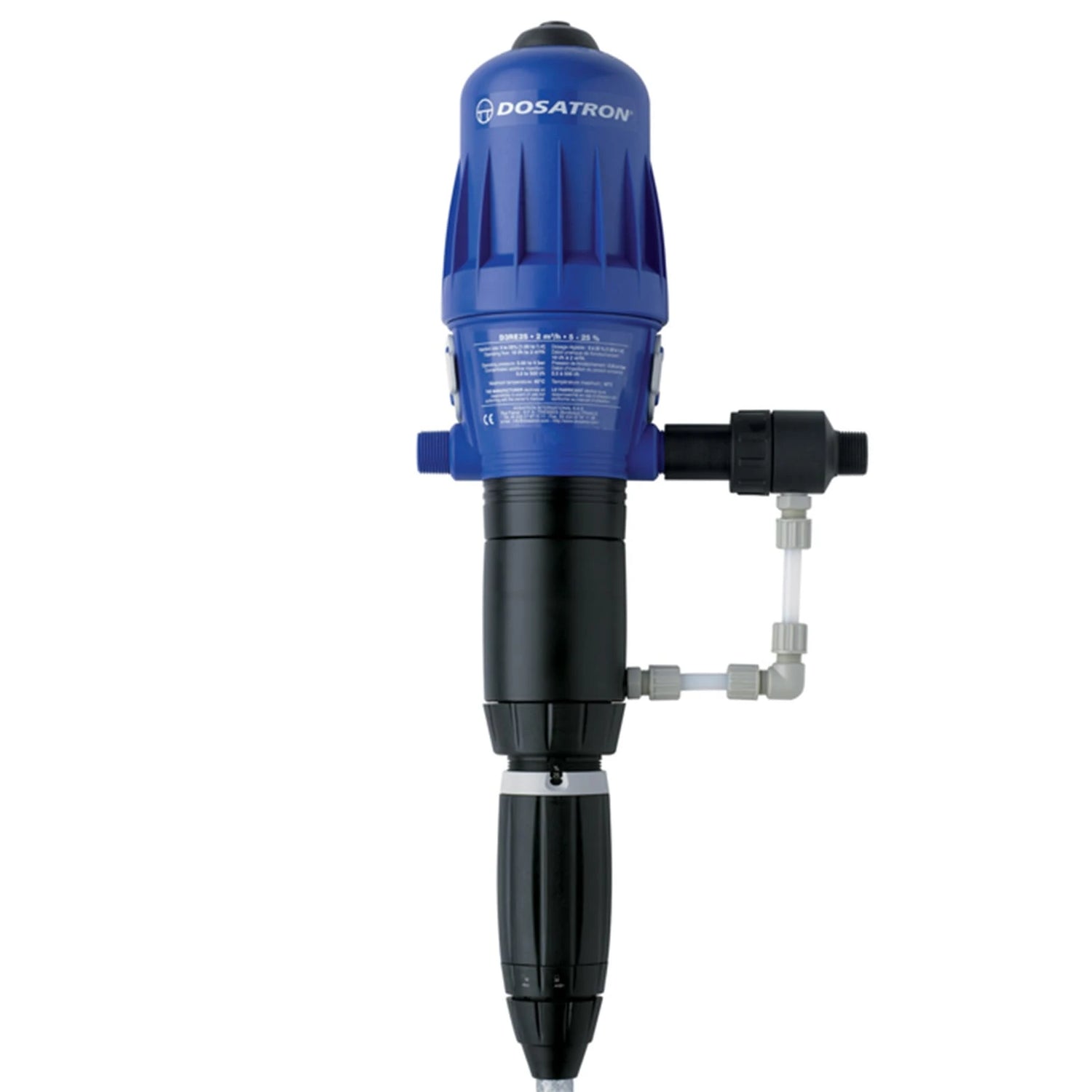

Dosatron D3RE25IEV SH Safe

Dosatron D3RE25IEV SH Safe

Dosatron dosing pumps are installed directly in the water supply line and operate by using the flow of water as the power source – no electric power is needed. The water activates the Dosatron, which takes up the required percentage of concentrate directly from the container and injects it into the water. Inside the Dosatron chemical injector unit, the concentrate is mixed with the water, and the water pressure forces the solution downstream. The dose of concentrate will be directly proportional to the volume of water entering the Dosatron, regardless of variations in flow or pressure, which may occur in the main line.

Technical Specifications

Model: Dosatron D3RE25IEV SH Safe

• Injection range: 5 – 25 % [1:20 – 1:4]
• Water flow range: 10 l/h – 2 m3/h
• Operating water pressure: 0,5 – 4 bar
• Concentrated additive injection: 0,1 – 300 l/h
• Stroke volume: ~ 0,53 l
• Connections: NTP-BSP 3/4” M Ø 20x27mm
• hose: PVC Ø 16x22mm – Lg 1,75m

Contents:

• D3RE25IE
• Dosatron Wall Bracket
• Transparent Suction Tube – 175cm Long, ø 6mm ID x 9mm OD (1/4’’ ID x 3/8’’ OD)
• Owner’s Manual

Barrel NOT included

Key Features

• Water-powered, non-electric proportional dosing system

• SH Safe model for enhanced operator protection and backflow prevention

• Adjustable dosing ratio for accurate chemical mixing

• Resistant to aggressive acids, detergents, and disinfectants

• Simple to install, operate, and maintain

• Ideal for soft washing, sanitising, horticultural, and industrial cleaning systems

Warranty: 12 month limited warranty. Return to base for full warranty inspection.
