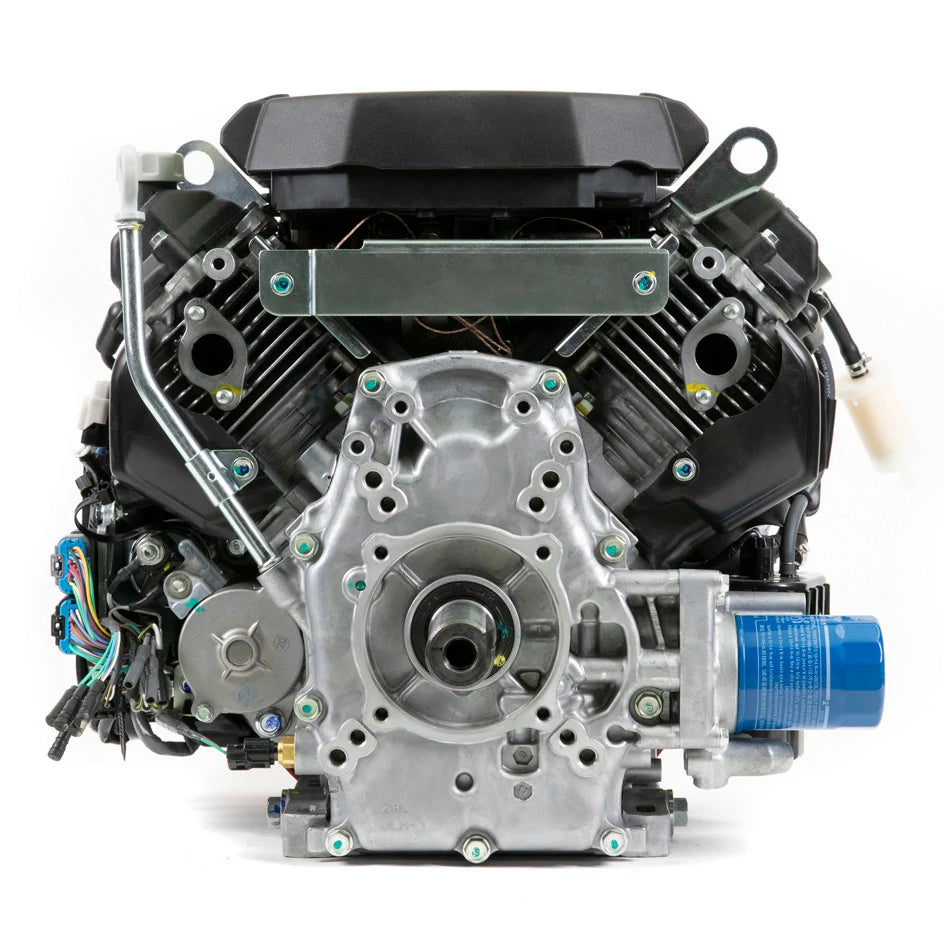

Honda GX690 V-Twin Petrol Engine

×

£2,376.00 + VAT

£2,851.20 inc VAT

Shipping calculated at checkout.

Delivery and Shipping

All orders are dispatched promptly from our UK warehouse, with most in-stock items shipped the same or next working day.

Larger machinery and built-to-order equipment may require additional lead time, which will be confirmed after checkout or by our team.

Shipping rates are calculated based on size, weight, and destination, and tracking information is provided once your order is on its way.

If you need an urgent delivery or have specific requirements, please contact us before ordering.

Contact us for bulk pricing or to become a distributor

Description
The Honda GX690 is a high-performance, 4-stroke, V-twin engine designed for demanding commercial and industrial applications. With a displacement of 688cc and 22.0 horsepower, it delivers exceptional power, reliability, and efficiency, making it ideal for equipment such as generators, pumps, pressure washers, and heavy-duty lawn care machines. Featuring an overhead valve (OHV) design for improved fuel efficiency and reduced emissions, the GX690 also offers smooth operation with its horizontal shaft and durable construction. Equipped with electric start, a full-pressure lubrication system, and a 2-barrel carburetor with fuel cut solenoid, this engine ensures ease of use, long-lasting durability, and optimal performance in tough environments. Whether you're working on the job site or handling high-demand tasks, the Honda GX690 is built to deliver consistent power and reliability you can count on.


Technical Specifications:

Engine Type: 4-stroke, 2-cylinder OHV petrol engine

Shaft dimeter: 1inch keyway shaft

Bore x Stroke: 78 x 72 mm

Net Power: 16.5 kW (22.1 HP) @ 3,600 rpm

Continuous Rated Power (3,000 rpm): 11.5 kW (15.4 HP)

Continuous Rated Power (3,600 rpm): 13.0 kW (17.4 HP)

Max. Net Torque: 48.3 Nm (4.93 kgfm) @ 2,500 rpm

Ignition System: Digital CDI with variable ignition timing

Carburetor: 2-barrel with fuel cut solenoid

Starter: Electric start (no recoil)

Fuel Consumption at Continuous Rated Power: 6.7 L/h @ 3,600 rpm

Engine Oil Capacity: 1.7 L



Dimensions:

Weight: 44.6kg

Length: 429mm

Width: 410mm

Height: 438mm
