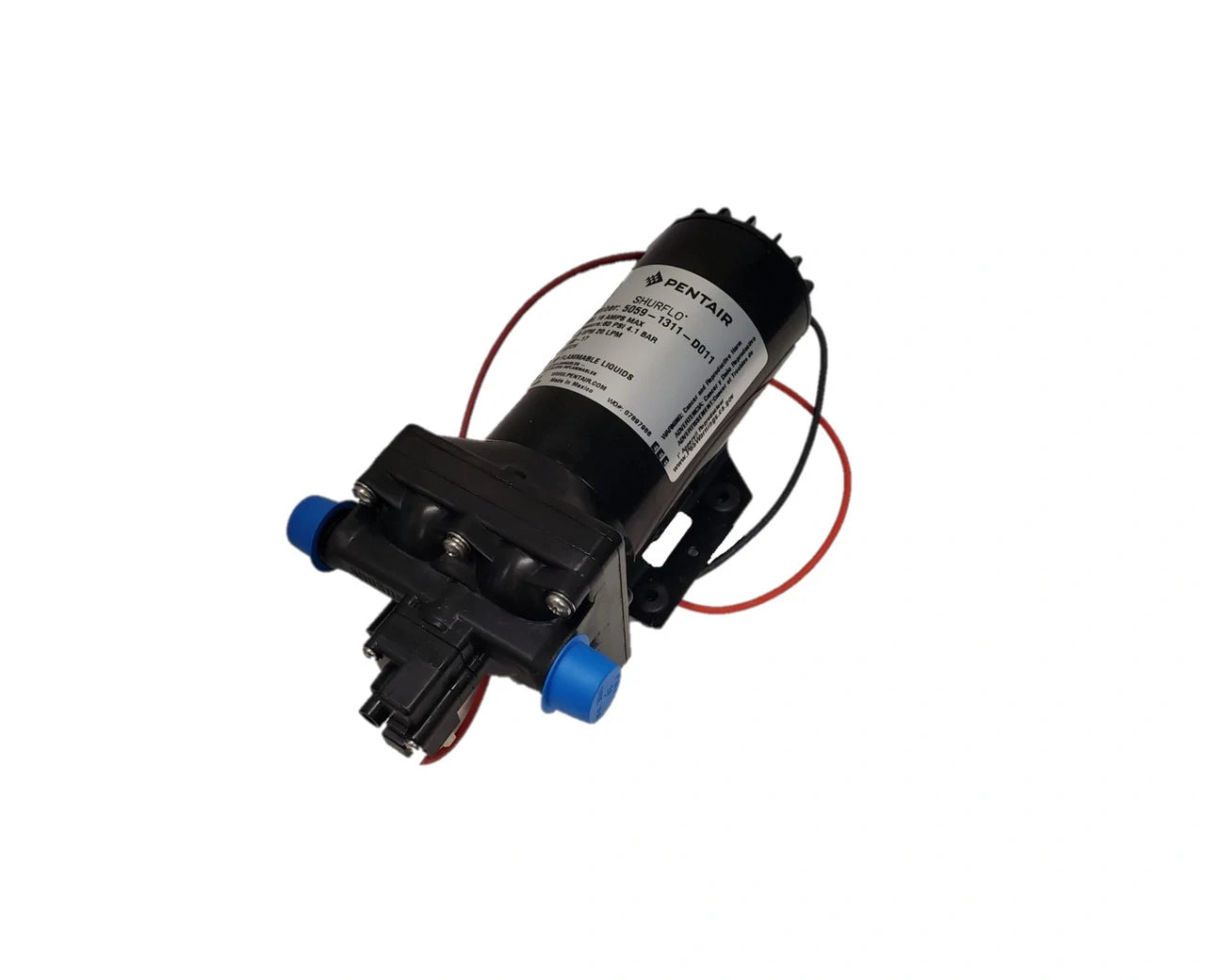

Shurflo 5059-1311-D011 (P/SW) 12v Pump 60PSI 20LPM 1/2" M Ports

Shurflo 5059-1311-D011

The Pentair Shurflo 5000 Series delivers high-performance fluid transfer with enhanced durability. Featuring a Santoprene® diaphragm for chemical resistance and Viton® valves for maximum chemical compatibility, this pump ensures long-lasting performance. The pump’s footprint matches other Shurflo models, making upgrades easy without modifying existing installations. Fitted with and external pressure switch to control the pump's operation based on the system's pressure requirements.

Technical Specifications:

Max Bar: 60psi (4bar)

Max LPM: 20lpm

Power supply: 12 Volt DC, 18 Amps

Internals: Viton check valve, Santoprene diaphragm

Max temp: 60°C max fluid temperature

Priming: Self-priming up to 2.4m

Inlet/ Outlet: 1/2” NPT Male hose barb ports

External Pressure switch

Function of a Pressure Switch on Shurflo Pumps:

Regulates Pump Cycling: The pressure switch monitors the pressure within the system and controls when the pump turns on or off. It ensures that the pump only operates when needed, preventing dry running or unnecessary operation.

When Pressure Drops: If the pressure drops below a preset threshold (e.g., due to fluid demand), the pressure switch activates the pump to restore the pressure.

When Pressure Reaches Set Point: Once the pressure reaches the desired level, the switch turns the pump off, stopping it from running and conserving energy

Prevents Over-Pressurization: The switch helps prevent the system from reaching excessive pressure by automatically stopping the pump when the system pressure is within the safe operational range.

Improves Longevity: By controlling the pump’s cycling (avoiding constant start/stop or overuse), the pressure switch reduces wear on both the pump and motor, extending their lifespan.

Energy Efficiency: The pressure switch contributes to energy savings by ensuring the pump runs only when necessary, thus conserving power when there’s no flow demand.

In short, a pressure switch on a Shurflo pump acts as an automatic controller, maintaining the desired system pressure, enhancing efficiency, protecting the pump from damage, and saving energy.

Warranty: 12 month limited warranty. Return to base for full warranty inspection.
