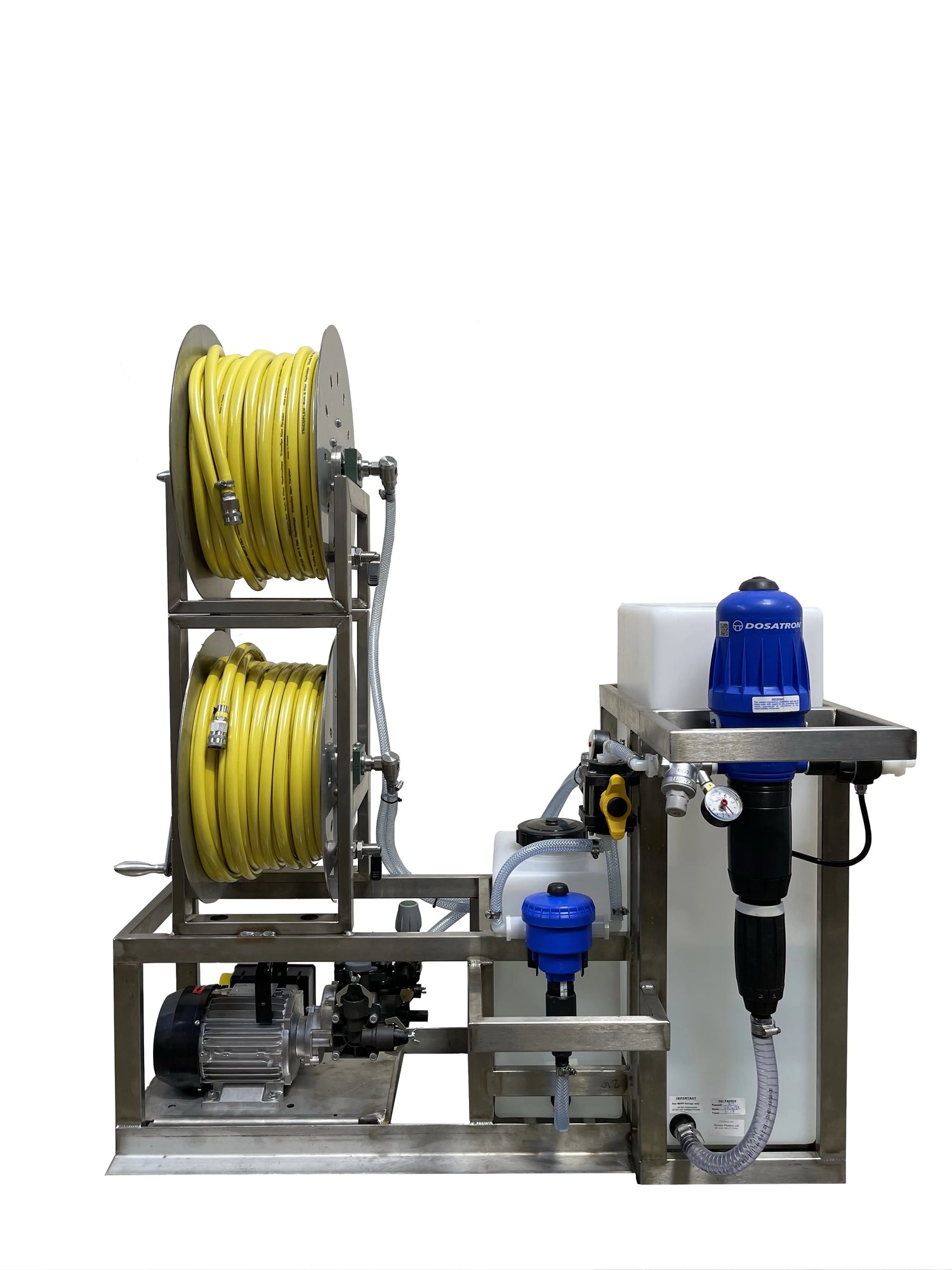

This all-in-one, flexible system is designed for seamless application of both biocide and sodium hypochlorite, offering excellent versatility for a wide range of cleaning tasks. The system’s easy-switch design lets you effortlessly change between chemicals, allowing for quick adaptation to different cleaning requirements.
The included tank systems are built to securely hold your chemicals, ensuring safe storage and minimal risk of contamination. When it's time to use them, simply connect your water supply to the desired Dosatron pump, and you're ready to begin. The Dosatron ensures precise chemical dosing, making your work efficient and consistent every time. Whether you’re handling roof cleaning, surface sanitising, or other high-pressure applications, this system simplifies chemical handling, reduces downtime, and provides reliable results across various tasks.
Dosatron D3RE25IE Details:
- 5 – 25 % [1:20 – 1:4]
- 10 l/h – 2 m3/h
- 0,5 – 4 bar
- 0,1 – 300 l/h
- ~ 0,53 l
- NTP-BSP 3/4” M Ø 20x27mm
- hose: PVC Ø 16x22mm – Lg 1,75m
Dosatron D07RE5 Details:
- Dosing Rate – 0.8% to 5.5% (1:128 to 1:18)
- Water Flow Range – 5 to 700 Litres Per Hour
- Operating Water Pressure – 0.3 to 6 Bar (4.3 PSI to 85 PSI)
- Operating Water Temperature – 5°C to 40°C
- Connections – 3/4” BSP / NPT Male
- Polypropylene pump casing
Electric Pump Unit:
The Comet MC20 pump is expertly fitted to enhance the performance of your Dosatron, providing the extra boost needed to project chemicals over a longer length of hose with precision and power. This upgraded pump ensures that even when you're working at a distance, you maintain consistent chemical flow and reliable delivery, maximizing your cleaning efficiency. Requires a 240V power supply with a 3-pin plug. Simply plug into the customer's electrical supply or a generator for operation.
To ensure optimal operation, the system should be supplied with water from a clean water supply tank—garden tap pressure is insufficient and will not deliver the necessary performance.
Technical Specifications (MC20 MPU):
Max BAR: 20bar
Max LPM: 18.5lpm
240v supply
NBR diaphragm's
Hydra pressure regulator
Other specifications:
- DO7- Fitted to 20l tank
- DO3- Fitted to 60l tank
- 500mm softwash lance (1/2" inlet, mini QR outlet)
- 2 x Quad jets (DO7 0º-20, 15º-20, 25º-20, 40º-20) (DO3 0º-40, 15º-40, 25º- 40, 40º-40)
- Inlet Kit- Caleffi Valve Pressure Gauge
- Dosatron Wall Brackets
- Hozelock inlet to ball valve- allowing you to change to the desired Dosatron
- Outlet: Midi QR
- 2 x 50m LP 1/2 Tricoflex reels
Dimensions:
Height: 1320mm
Width: 1100mm
Depth: 650mm
User Manual
