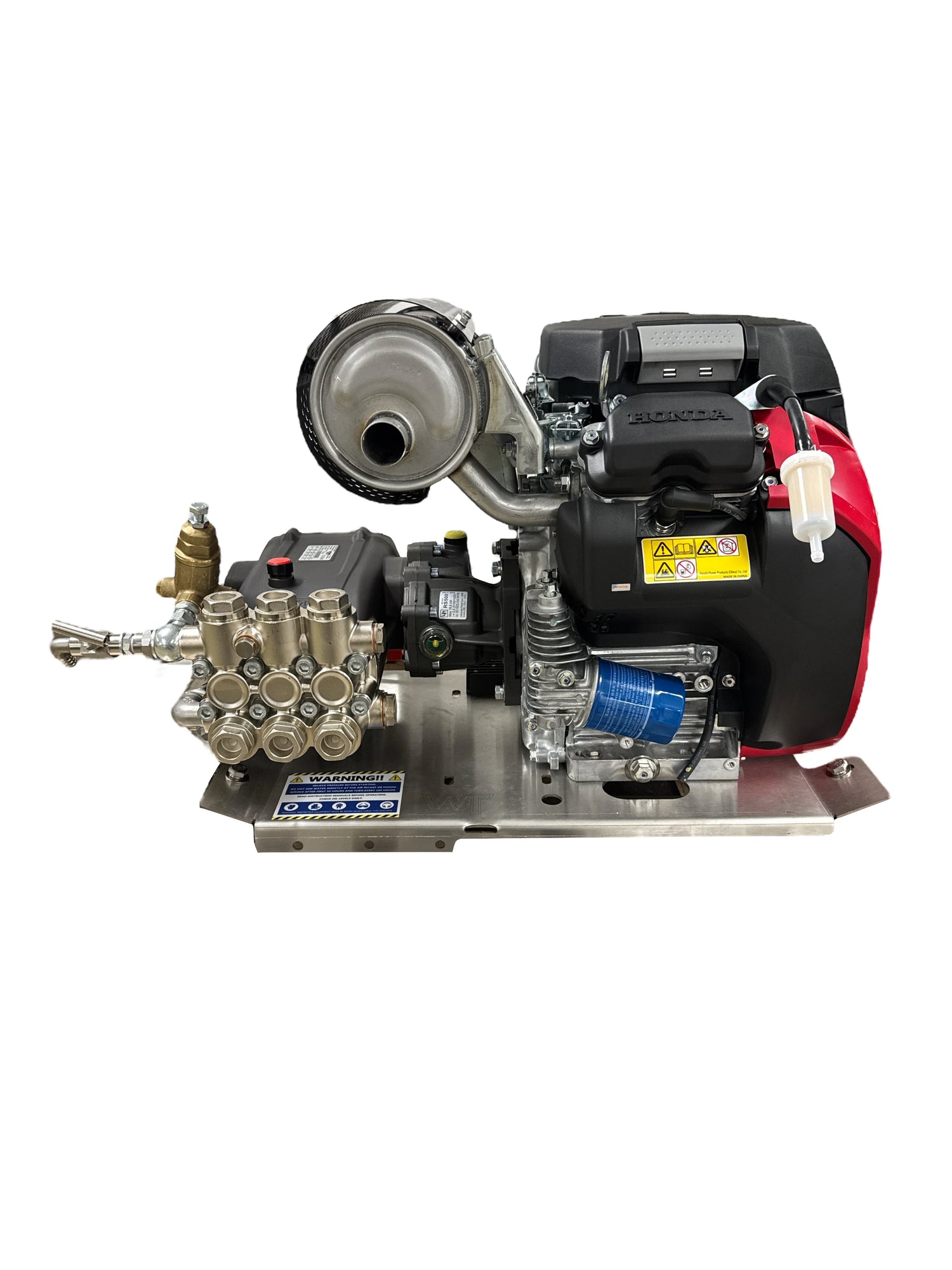

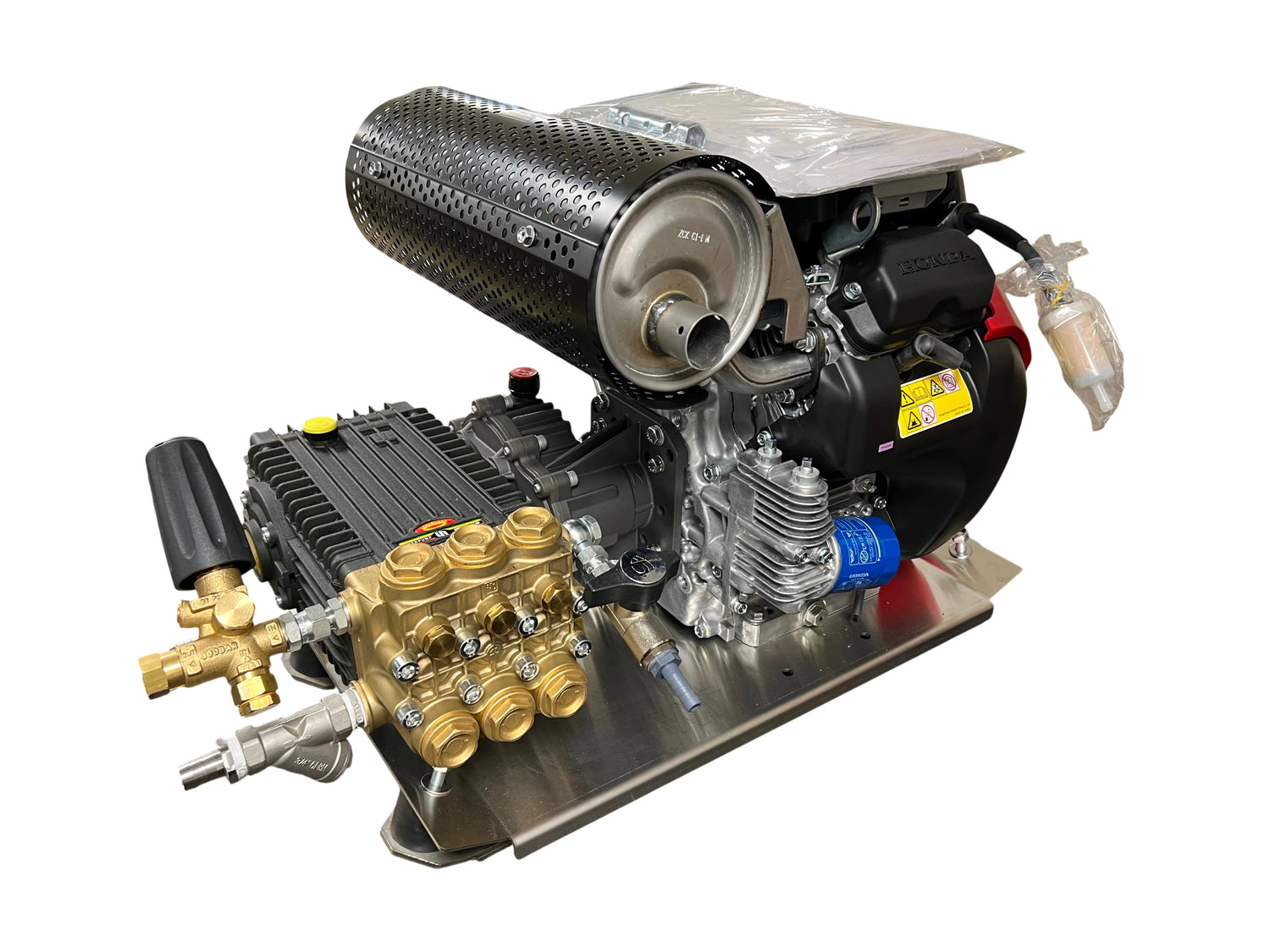

Watertek Honda GX690 Pressure Washer Skid Assembly

WATERTEK HONDA GX690 22HP E-START PRESSURE WASHER

This heavy-duty, commercial-grade unit is designed for durability. Designed and manufactured in the UK. Its rugged stainless steel frame, corrosion-resistant construction, and industrial-grade components set it apart. The unit is powered by an industrial Honda GX690 22hp E-Start petrol engine backed by a 3-year warranty and features a 2:2:1 reduction gearbox to ensure cooler operation and extend pump life.

A Mazzoni GM series pump provides reliable performance and comes with a 2-year manufacturer warranty, while a return to tank unloader valve and easy priming/frost valve enhance efficiency. This machine is field-service friendly, allowing quick repairs with just basic tools and minimizing downtime.

Designed with puncture-resistant pneumatic wheels, anti-vibration mounts, and nickel-plated pump heads, it delivers smooth operation and resilience, even in tough conditions.

Designed for high-flow rate pumps, the 18hp engine is perfect for professionals seeking to upgrade their equipment for more demanding commercial tasks. The increased flow rate enables you to cover larger surface areas, helping you complete jobs faster and more efficiently.

Please note that this unit is designed to be used with a water storage tank (e.g., a wheelie bin or water tank). Garden tap pressure will not provide sufficient flow rate to meet the demands of the pump.

UNIT DOES NOT COME WITH A FUEL TANK- However, options are available to add  a jerry can conversion kit for the skid plate option.

Technical Specifications:

Max Bar: 220bar

Max LPM: 25lpm

Max Temp: 60ºc

Easy prime valve

Pressure sensitive unloader- to adjust flow and pressure

Pump: Mazzoni GM series

Engine: Honda GX690 22hp Electric Start

Gearbox: Mecline M24

Battery: Sterling 12v (battery provided but not fitted if skid plate option is selected)

Dimensions:

Skid:

Weight: 90kg

Height: 470mm

Width: 500mm

Length: 800mm

Accessories kits

KEW Accessories Kit: QR trigger and lance

• ST2600 KEW Trigger
• Kew QR 900mm lance with Mini QR
• Turbo nozzle on QR
• Quad Jet (0º, 15º, 25º, 40º nozzles)
• 3m 19mm water suction hose and filter
• 3m 12mm water return to tank hose

TecPro Accessories Kit: Fixed trigger and lance

• TecPro Trigger 900mm lance with Mini QR
• Turbo nozzle on QR
• Quad Jet (0º, 15º, 25º, 40º nozzles)
• 3m 19mm water suction hose and filter
• 3m 12mm water return to tank hose

Upgrade to Quick Release

Quick release fittings make connecting and disconnecting a breeze. Featuring a row of ball bearings, they securely lock in place when connected, ensuring a fast and reliable connection every time.

Pressure Gauge:

The Pressure Gauge on our pressure washers helps you monitor and control the water pressure for optimal performance. It gives accurate readings, so you can adjust the pressure for different cleaning tasks.

"
