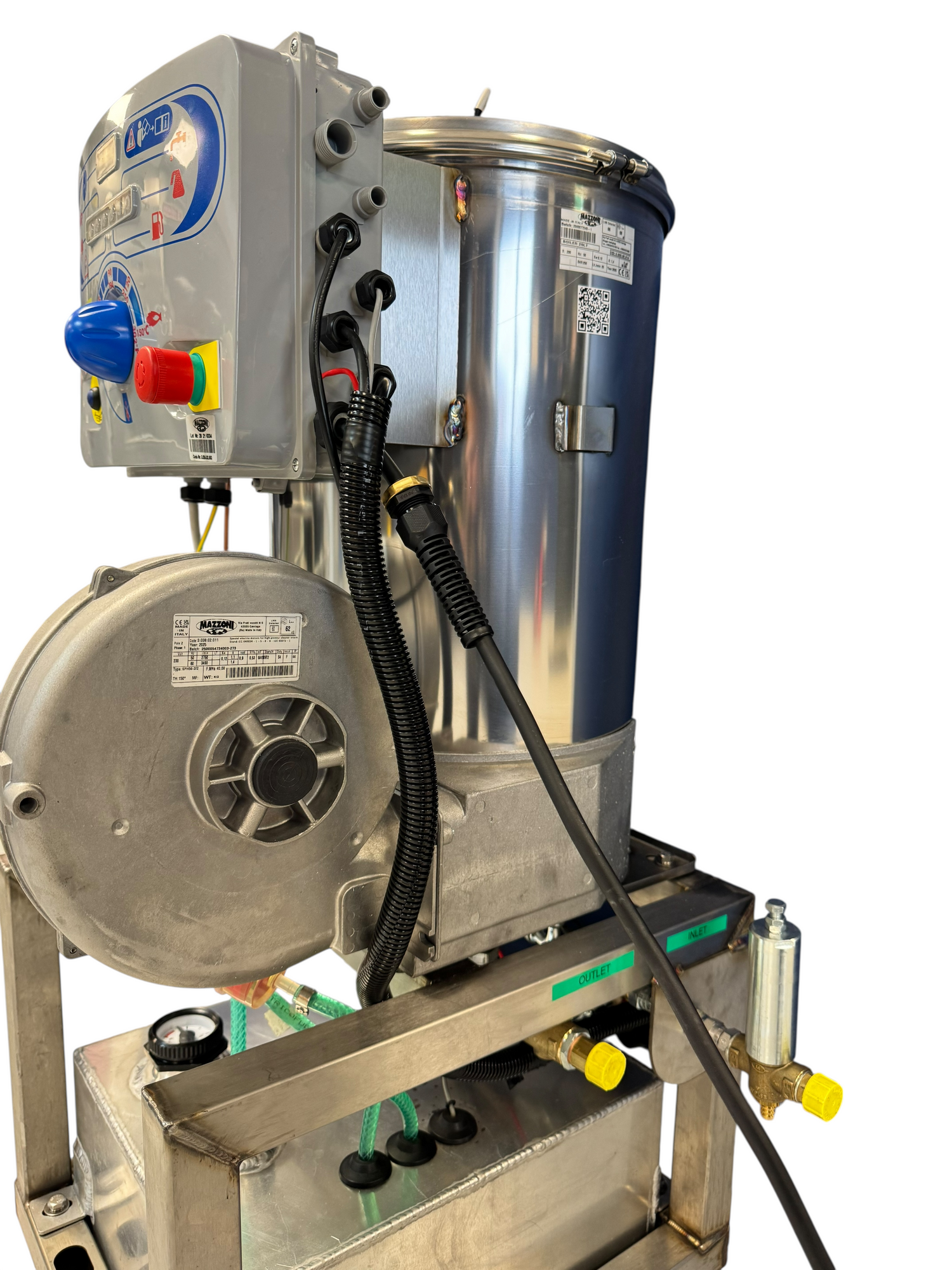

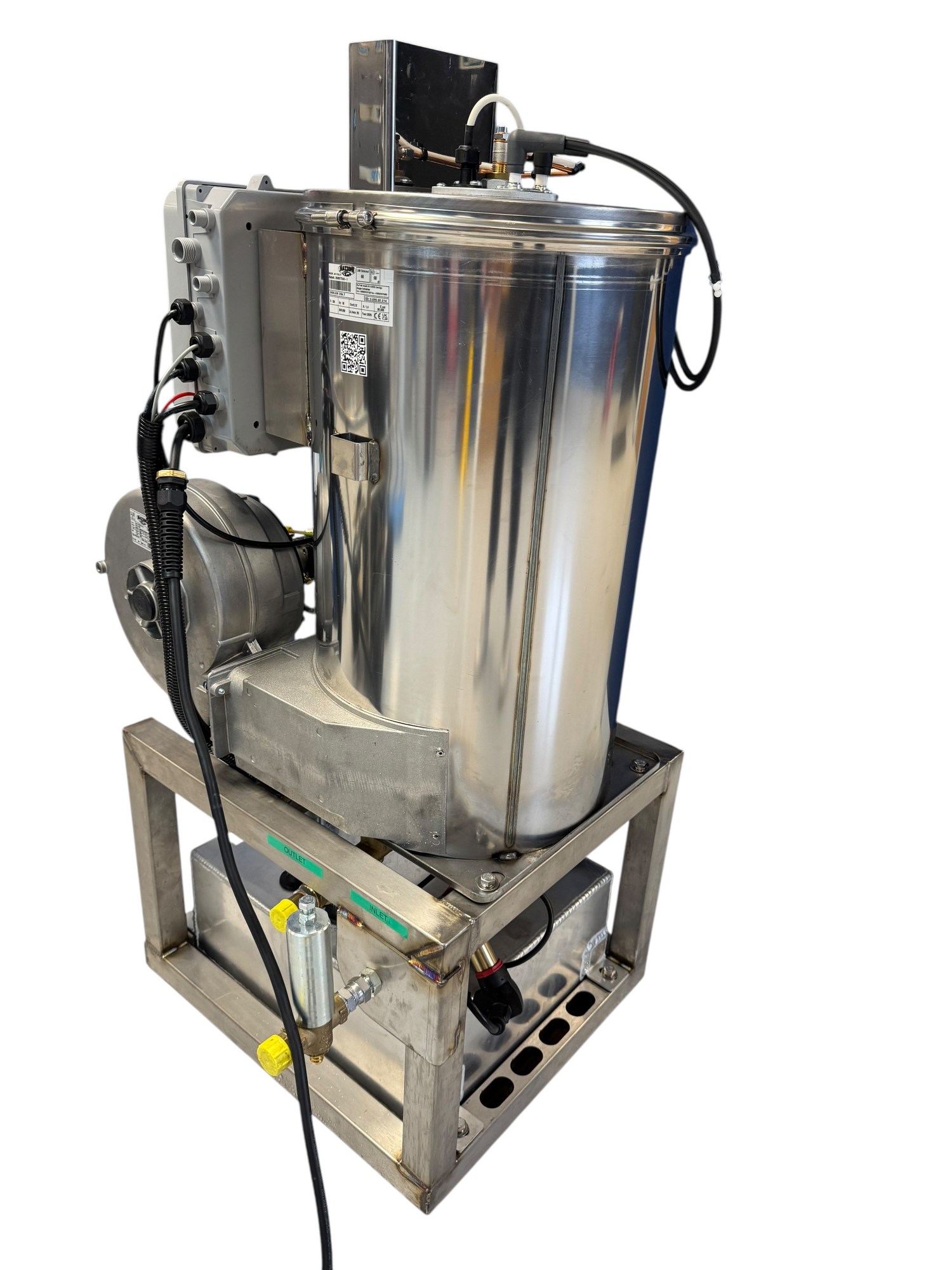

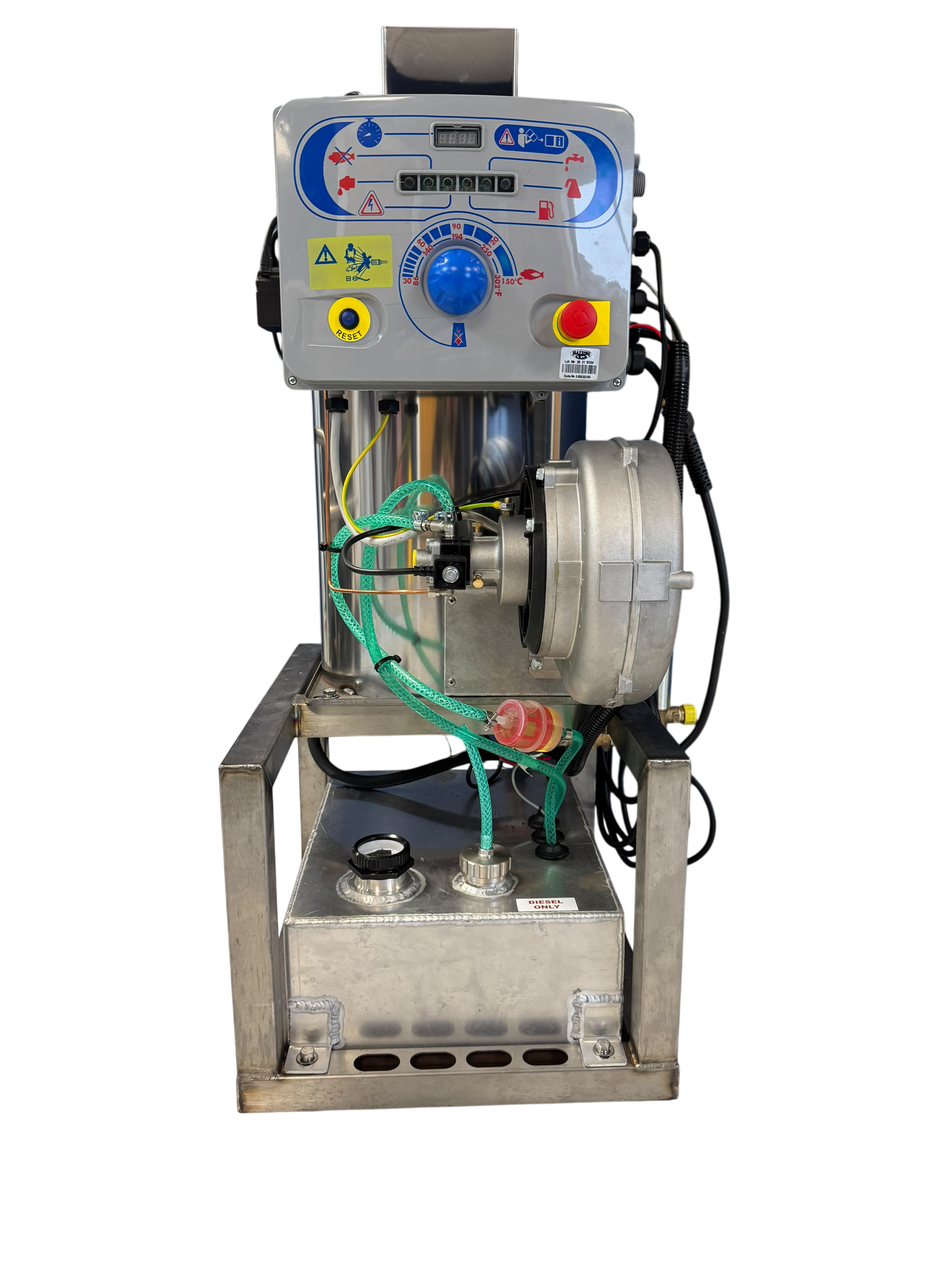

Watertek ProFlame® Boiler Unit 240v 25L Van Mount with Tank and Panel

The Watertek Boiler Unit is designed to provide high-efficiency hot water for demanding cleaning tasks. Powered by a Mazzoni diesel boiler and fed by a high-pressure pump that requires a minimum of 25 bar, this unit heats cold water up to 150°C, making it ideal for a wide range of applications.

Featuring a 240v power supply and diesel heating, the boiler unit ensures optimal performance with low power consumption and high efficiency.

The unit is constructed with a robust stainless steel outer casing, ensuring long-lasting durability. The base is made of stainless steel, and it comes with a 18L aluminum fuel tank with a built-in fuel level indicator

Unit is best used for bolting down in a van pack set-up

Key Features:

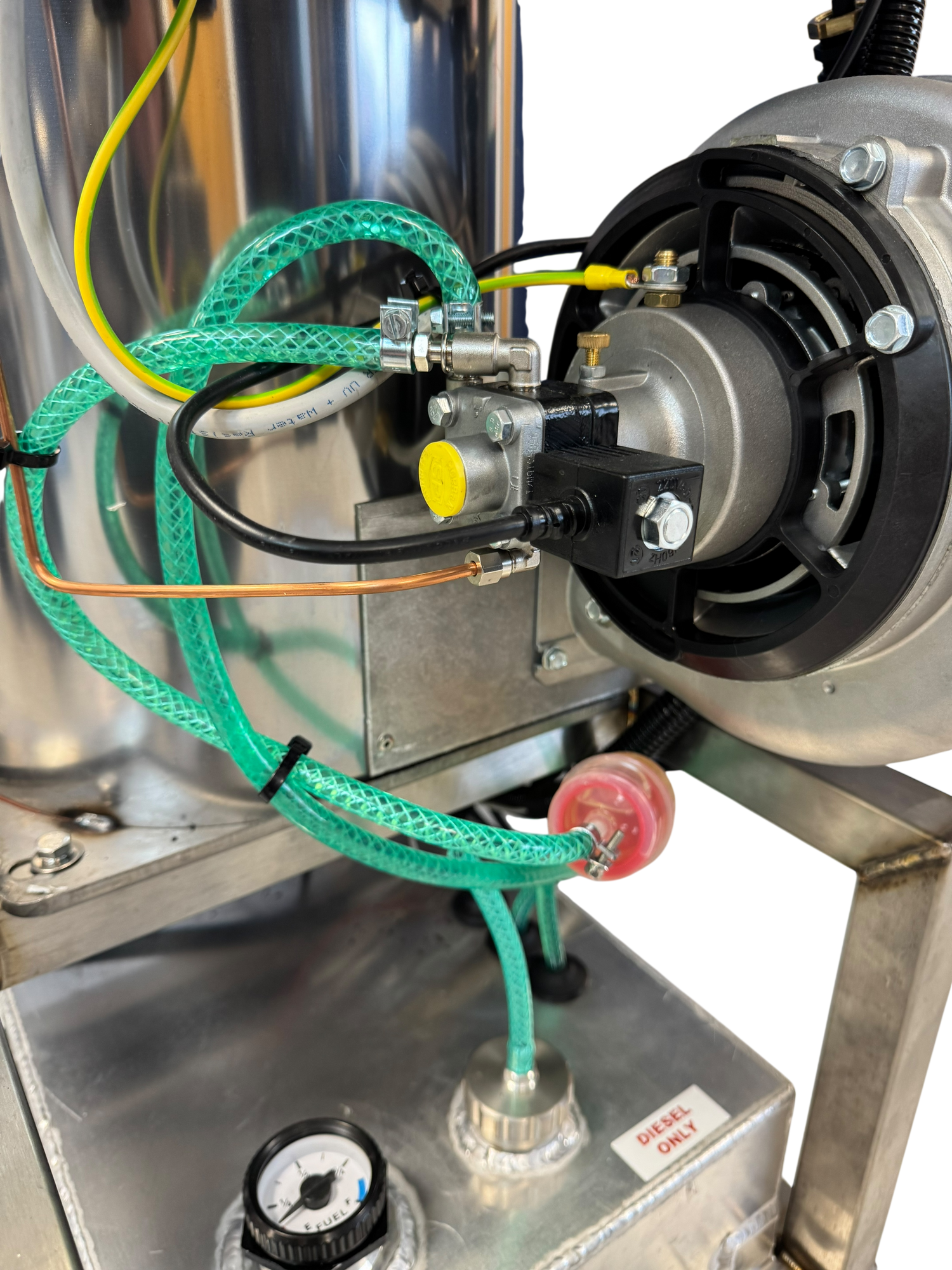

• Diesel-Driven Heating: The Mazzoni Firebox uses a diesel boiler to efficiently heat water up to 150°C, making it ideal for tough cleaning jobs that require high-temperature water, such as degreasing and sanitizing in industrial, agricultural, and commercial settings.

• High-Pressure: The unit is fed by your high pressure pump (pressure washer).

• Fuel Efficiency & Low Emissions: The high-performance diesel boiler is designed for low fuel consumption while maintaining powerful heating. The Mazzoni boiler meets the latest European emissions standards, ensuring environmentally responsible operation.

• Durable Construction: The boiler is made from high-quality stainless steel for strength and longevity.

• Integrated Safety Features: The Mazzoni boiler includes safety valves and flow control to prevent damage due to lack of water or pressure, ensuring safe and reliable operation at all times.

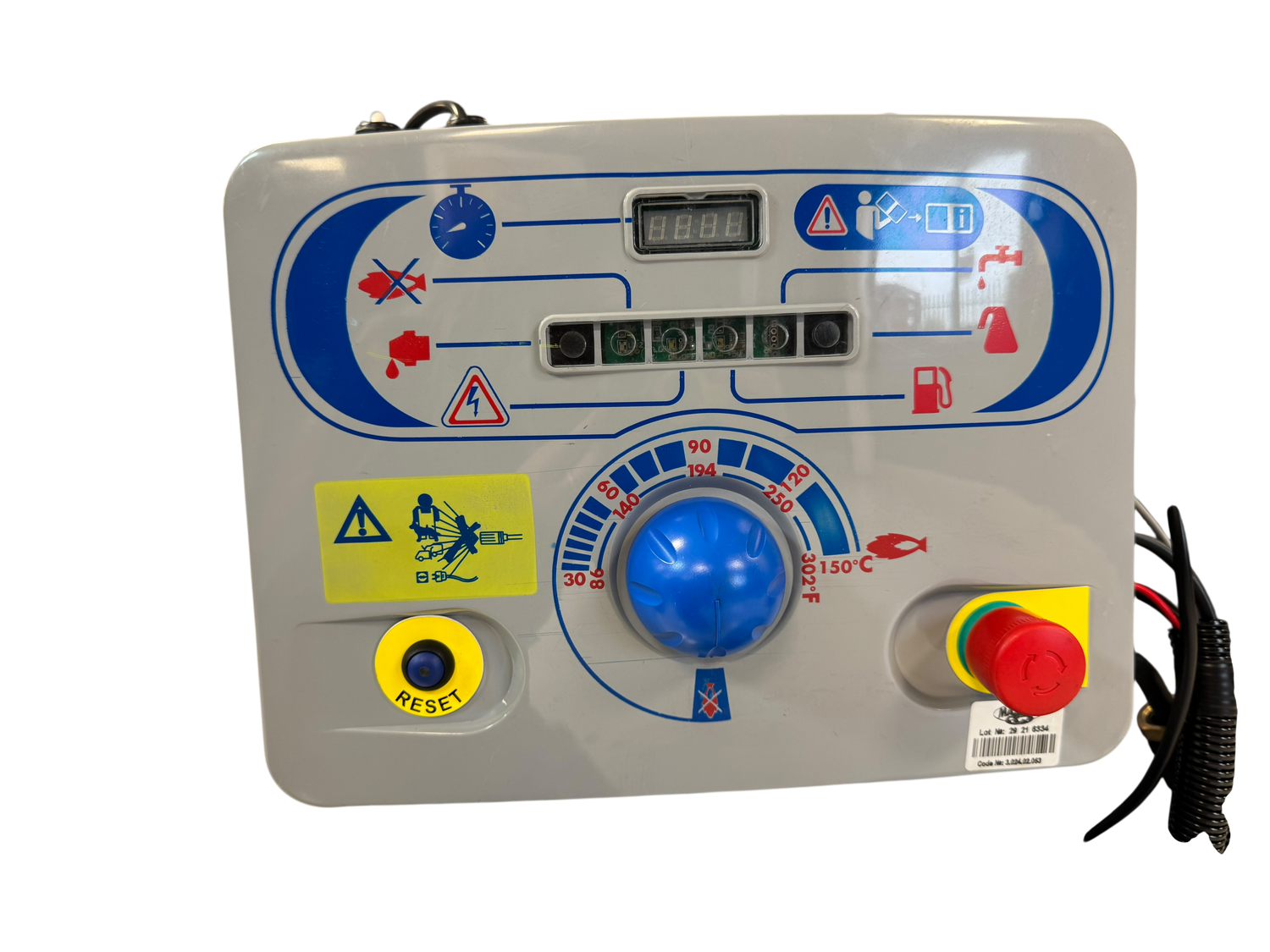

• Intelligent Control Panel: The unit comes equipped with an advanced control panel for easy operation and temperature management, offering precise control over the cleaning process.

• 18L Fuel Tank: The Mazzoni boiler is supplied with a 18L fuel tank, capable of running on diesel or kerosene, and features a built-in fuel level indicator for convenient monitoring.

Specifications:

Max Pressure: 250 Bar

Max LPM: 25lpm

Power Supply: 240V, 13 Amp

Fuel Type: Diesel or Kerosene

Fuel Tank Capacity: 18 Liters

Heating Capacity: Up to 150°C

Voltage: 240v

Safety Features: Safety valve, water flow control

Construction: Stainless Steel box frame with tank and boiler mounted

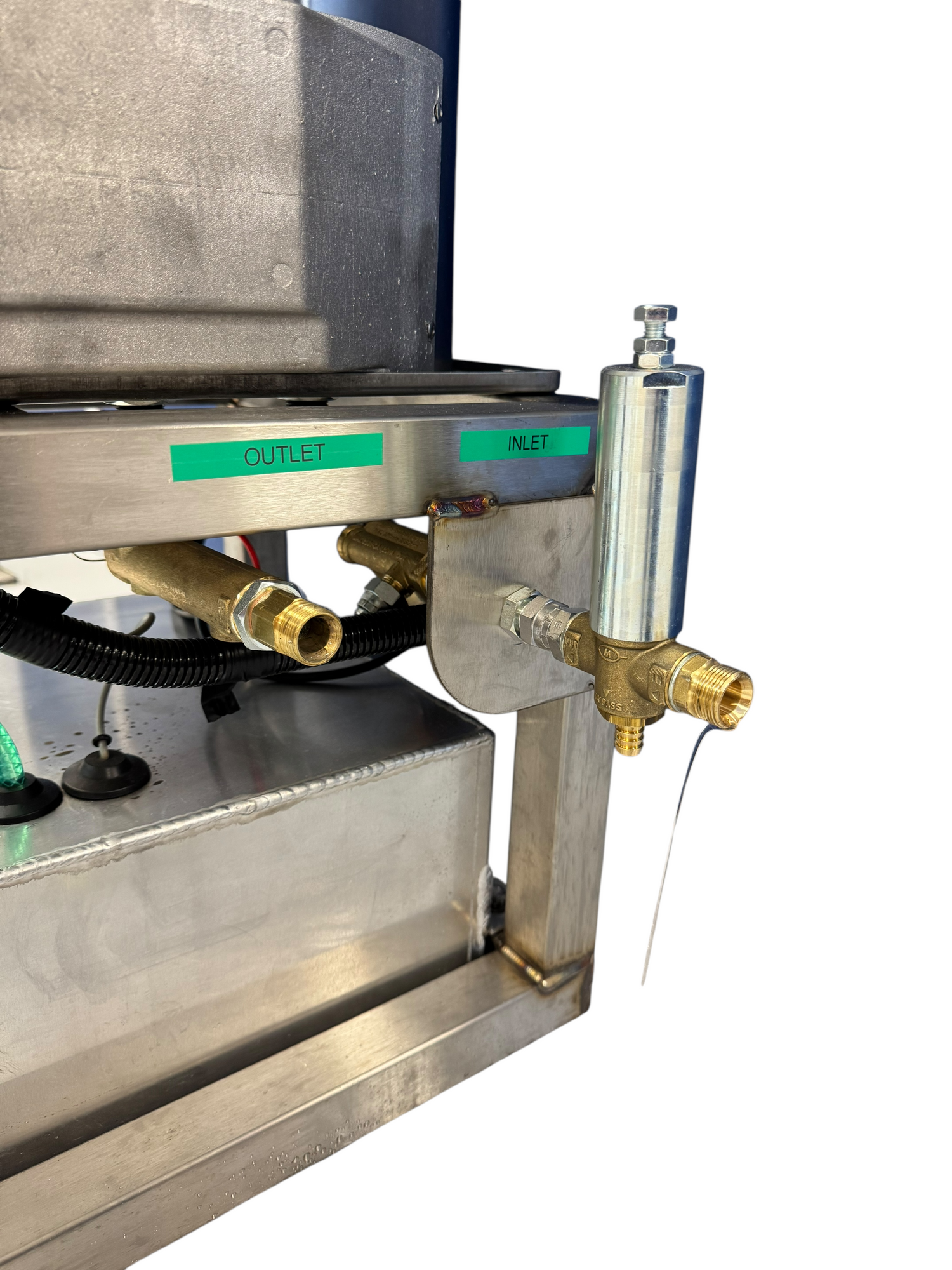

Inlet/outlet: 3/8" Male Inlet/ 3/8" Male Outlet

Fuel consumption: 8.5 Litres/ hour

Supply:240v mains electricty or 1.6kva minimum generator. Can be powered by a 1000w 12v inverter.

Dimensions:

Weight: 80kg

Height: 1050mm

Length: 500mm

Width: 430mm

Ideal for:

• Industrial cleaning (factories, warehouses)
• Agricultural and livestock cleaning
• Heavy-duty surface cleaning (concrete, machinery, etc.)

The Watertek Boiler Unit combines reliability, efficiency, and safety for effective hot water generation in a compact, high-performance package. Perfect for professionals in industries that require powerful, consistent hot water for their cleaning operations.
